Drawing and Editing Encampment Boundaries in Outreach

This article describes how to use the tools provided for drawing and editing Encampment boundaries.

For details on creating and editing Encampments that aren't related to using the drawing tools, refer to Managing Encampments in Outreach.

In Outreach, when you click the ADD NEW BOUNDARY button add new boundary button

or the Edit Encampment Boundaries button,

edit boundary button

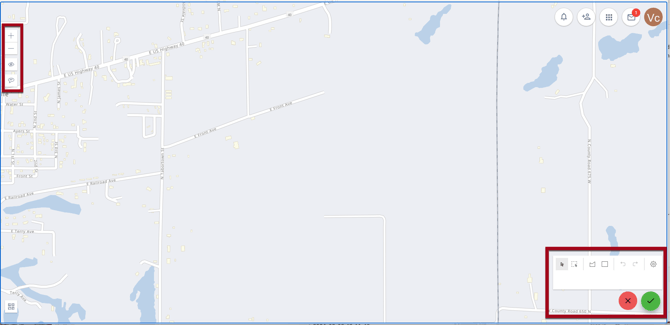

the display changes as follows:

drawing orienation

Show/Hide Encampments

The Show Encampments/Hide Encampments button appears in the upper left corner of the screen to allow you to choose whether other Encampments in the area will be visible while you are drawing/editing.

hide encampments

When the button is set to Show Encampments, a Show Encampments Information/Hide Encampments Information button also appears. This button allows you to display the Name, Start Date, and (if applicable) End Date for the Encampments that are displayed on the map.

show encampment info

Drawing a New Encampment Boundary

After you click the ADD NEW BOUNDARY button, click either the rectangle icon or the polygon icon according to the type of shape you want to create:

tool panel

  • To draw a square or rectangle shape: click the rectangle icon, then click and drag the cursor on the screen.

  • To draw a more complex shape, click the polygon tool.
    • To draw straight line segments: click on the map, move the cursor, and click again.
    • To draw a curve: click and hold while you move the cursor. The system will create a series of short line segments to approximate the curved shape.

        Double-click to indicate that you have finished drawing the boundary.

2024-02-01_20-18-50 (1)

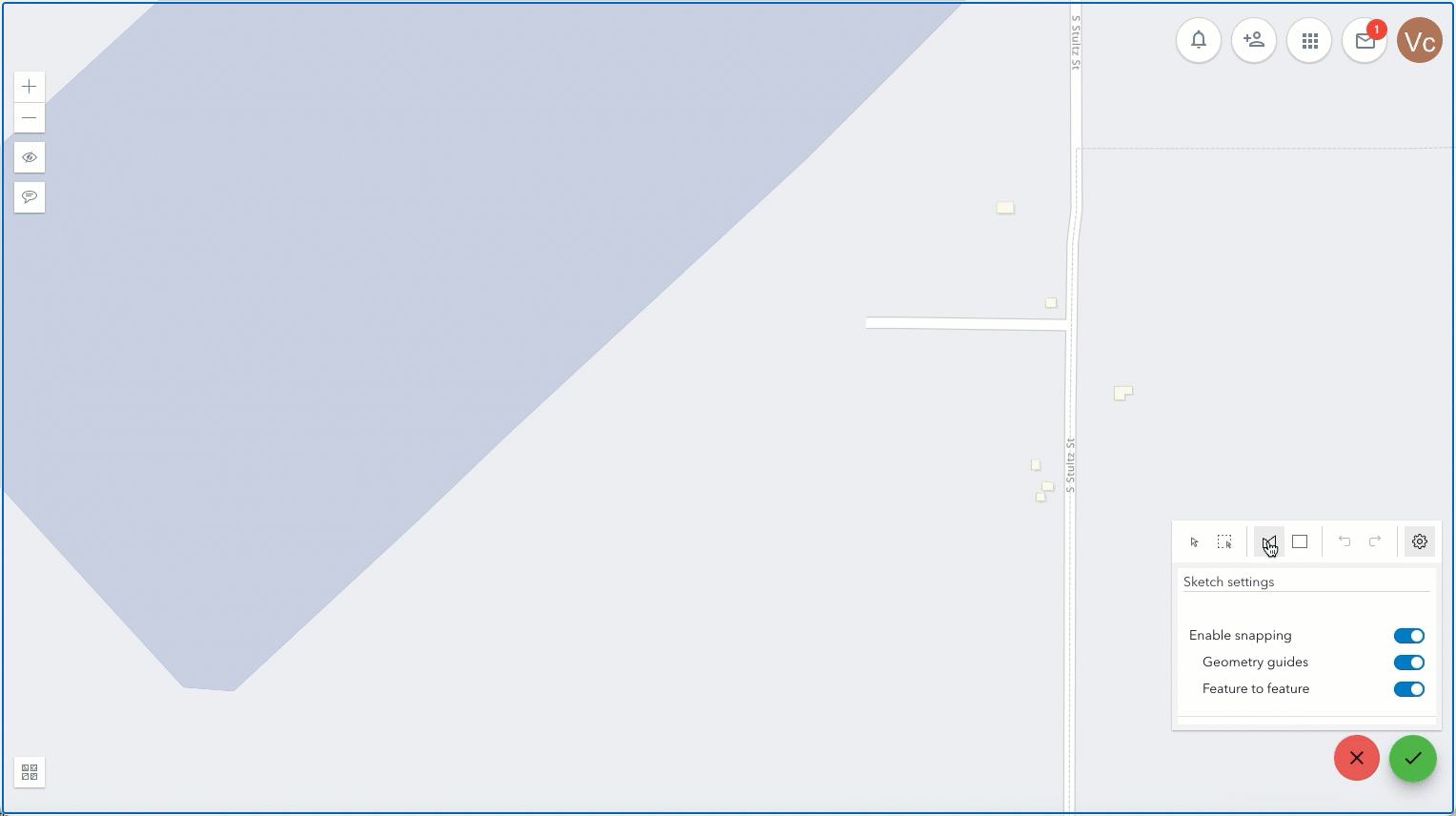

To help you draw parallel lines and 90-degree angles in a polygon, you can use the "snapping" tool:

  • Click the gear icon to show the Sketch settings, then turn on the Enable snapping toggle and the Geometry guides toggle.


  • Select the polygon tool and begin drawing. As you click on the map to end one segment and start a new segment, you will see the following guides:
    • A right-angle symbol appears when the current segment is at a right angle to the previous segment.
    • A parallel line symbol appears when the current segment is parallel to another segment.2024-02-01_20-43-15 (1)

Once you have drawn the boundary:

  • To return to the Outreach map without saving this Encampment, click the red X. red
  • If you are satisfied with the shape you drew and want to return to the Add Encampment screen to save this Encampment, click the green check
  • If you want to continue creating the Encampment but are not satisfied with the shape you drew, click anywhere in the shape. An orange box will appear around it, and you will be able to edit or delete the shape.
    • To edit the shape:
      • Click and drag the midpoint of one of the orange lines to increase or decrease the size of the encampment in a horizontal or vertical direction.
      • Click and drag a corner of the orange box to increase or decrease the size of the encampment equally on all sides.
      • Click and drag the circle at the top of the orange box to rotate the encampment.

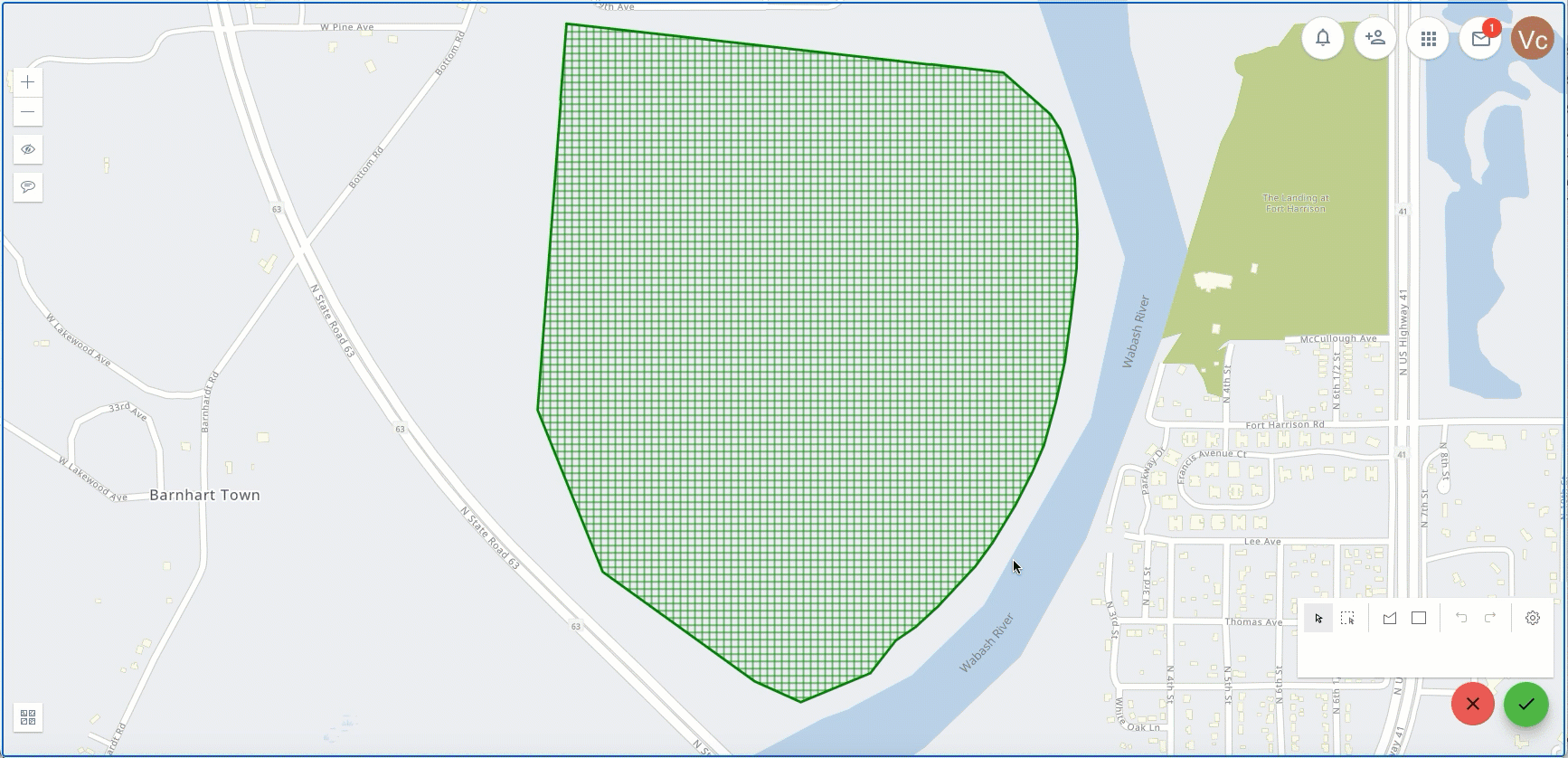

      • To edit individual points on the boundary, click inside the boundary. The orange box will disappear, and the endpoints and midpoints of each line segment will appear. Click and drag the points to reposition them as needed.

        2024-02-02_11-07-24 (1)

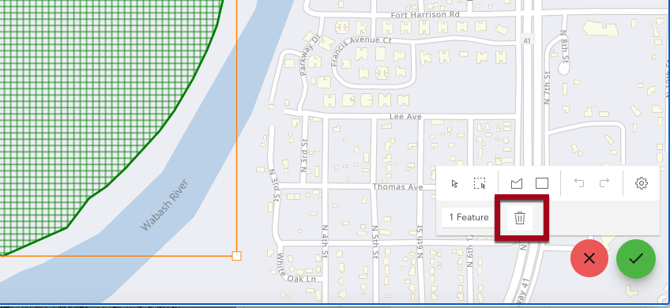

    • To delete the shape, click the trash can icon. You can then draw a new boundary as described above. (If the Enable snapping toggles are still displayed, click the gear icon to hide them so that you will be able to see the trash can.)

      feature trash can 2
    • When you are satisfied with the shape, click the green check mark green-1 to return to the Encampment Profile to save the Encampment.

Editing an Encampment Boundary

When you click the Edit Encampment Boundaries button for an Encampment, an orange box will appear around the encampment, and you will be able to edit the shape as described above.


Updated: 02/05/2024
