Sample Looks

Outreach Model: Quarterly Client Count in Encampments

Stakeholders and planning entities want to know how encampments have shifted on a quarterly basis. The Looks below contains a count of clients entering encampments and a percent of change on a quarterly basis.

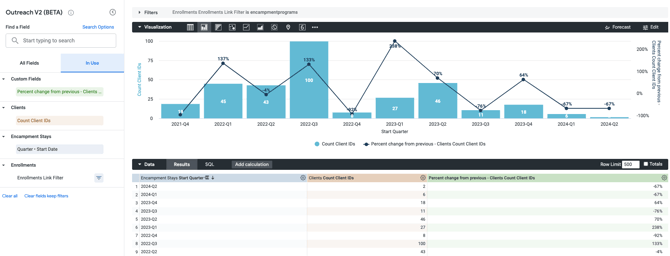

Quarterly Client Count in Encampments

The steps below outline how to create this Look.

1. Explore - Outreach Model
2. Fields
     Add the following fields to the Look:
    • Dimensions
      • Encampment Stays – Quarter • Client Start Date
    • Measures
      • Clients – Number of Clients
    • Custom Fields
      • % Change from Previous Row
        • Select the Gear icon in the Data Table next to the Clients Number of Clients Header
        • Hover over Calculations, then select % Change from Previous Row
        • The table calculation will appear under Custom Fields
        • Update the Name to Percent Change from Previous Quarter
3. Filters

     Add the following fields as filters to the Look as needed:

    • Encampments – Name of Encampment: Set filter to specific Encampment Name
    • Encampment Stays – Client Start Quarter: Set range to fit reporting needs (I.e., is in year: 2022 for Calendar Year analysis for 2022, is not null if applicable, or is in the past 2 years for last complete year and current year)
4. Visualization – Column

      To update column visualizations to include bars and lines with values and left/right axes, complete the following steps.

    • Select Edit in the Visualization toolbar
    • Select Series
      • Select Percent Change from Previous Quarter
        • Type: Line
        • Points: Circle
    • Select Values
      • Toggle On Value Labels and Label Null Columns
    • Select Y
      • Drag Percent Change from Previous Quarter to the Right Axes Section
