Sample Looks

Outreach Model: Encampment Map by Client Count

A common use case of the Outreach Model will be creating maps to review encampments and unsheltered clients. The Look below shows a map of encampments with points that are proportional to the size of the encampment.

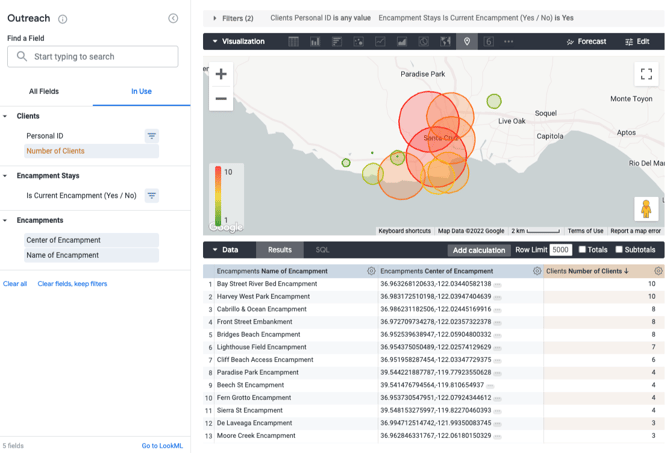

Encampment Map by Client Count

The steps below outline how to create this Look.

1. Explore - Outreach Model
2. Fields
     Add the following fields to the Look:
    • Dimensions
      • Encampments – Center of Encampment
      • Encampments – Name of Encampment
    • Measures
      • Clients – Number of Clients
3. Filters

     Add the following fields as filters to the Look:

    • Encampment Stays – Is Current Encampment (Yes/No): is Yes
4. Visualization – Google Maps

      To update map visualizations to include density color-coding on map plot points, complete the following steps.

    • Select Edit in the Visualization toolbar
    • Select Plot
      • Plot Mode – Points
    • Select Map
      • Adjust Map Position to best fit the reporting need
        • Custom Map Positions utilize Latitude, Longitude, and Zoom Level
    • Select Points
      • Type – Circle
      • Radius – Proportional to Value
      • Scale – Linear
      • Radius Units – Pixels
      • Marker Color Mode – Based on Value
